FANCO
VKO QUIETLINE SERIES
High Quality 150mm Axial Inline Exhaust Fan
SKU: EXVUVKOQ3

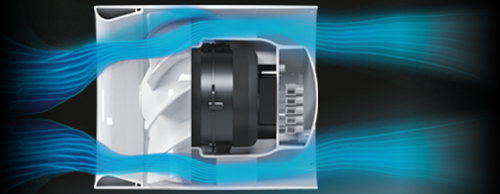

The Fanco VKO Quietline Axial Series features anti vibration technology and is designed to supply and exhaust ventilation in rooms at a very low noise level
VKO QUIETLINE SPEC SHEET
PRINTER FRIENDLY VERSION
FANCO VENTILATION RANGE BROCHURE
PRINTER FRIENDLY VERSION
EUROPEAN MADE
QUALITY EUROPEAN MANUFACTURED MOTOR
IPX4
MOTOR INGRESS PROTECTION RATING
2 YEAR
AUSTRALIAN REPLACEMENT WARRANTY

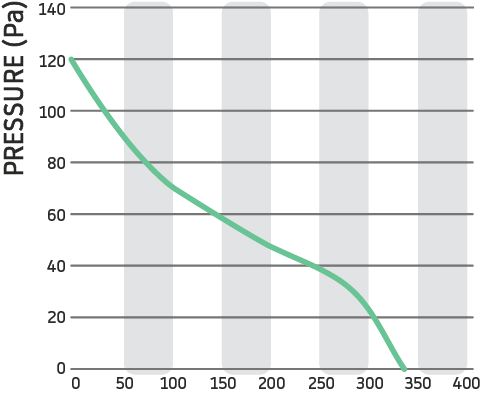

EXTRACTION CAPACITY
The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco VKO Quietline series offers powerful ventilation through a reliable low wattage electric motor. View the litres per second or cubic meters per hour capacity of the VKO Quietline model below.
| MODEL | HIGH SPEED M3/HR | HIGH SPEED L/s |
|---|---|---|
| VKO Quietline 150 | 335 | 93.05 |
NOISE LEVEL
The VKO Quietline provides continuous ventilation at a low noise level.
Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.
| MODEL | Noise level (dBA) |
|---|---|
| VKO QUIETLINE 150 | 39 |
POWER CONSUMPTION
The Fanco VKO Quietline Inline Exhaust fan is built with quality components and with efficiency in mind.
The fans consumption is very low thanks to its low wattage electric motor featuring anti vibration technology. View the Watt amounts below and see how much it would cost to run in your home
| MODEL | High speed (W) |
|---|---|
| VKO QUIETLINE 150 | 22 |
HOW DO I KNOW WHAT SIZE FAN MY ROOM REQUIRES?
HOW MUCH DOES THE VKO QUIETLINE COST TO RUN?
*Calculations based on the Australian Energy Market Commission 2017 Electricity Price Trends Report to derive average prices per State for the cost of electricity per kilowatt-hour. Calculator is not indicative of exact running costs.
APPLICATION EXAMPLES
LEAD & PLUG MODEL AVAILABLE
High Quality 150mm Axial Inline Exhaust Fan
SKU: W-EXVUVKOQ3-LP
This model comes with a lead and plug, which allows for “Do-It-Yourself” installation. Please keep in mind that choosing this option may limit your choices of controllers as many of them require hard wiring by an electrician.
VKO QUIETLINE INLINE EXHAUST FAN RANGE
VIEW ALL VKO QUIETLINE MODELS:
335 m3/hr
