FANCO

TT SILENT SERIES

Mixflow Inline Exhaust Fan in a range of sizes

SKU: EXVUTTS***

* Denotes Model Size

The Fanco TT Silent Series is designed to supply and exhaust ventilation in rooms requiring high pressure and powerful airflow at an extremely low noise level

EXTRACTION CAPACITY

The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco TT series offers powerful ventilation with the exact amount changing between model sizes. View the litres per second or cubic meters per hour capacity of each model below.

MODEL LOW SPEED (M3/HR) HIGH SPEED (M3/HR)
TT  Silent 150 405 555
TT Silent 200 810 1020
MODEL LOW SPEED (L/S) HIGH SPEED (L/S)
TT Silent 100 112 154
TT Silent 200 225 284

DIMENSIONS (MM)

MODEL D B B1 L H
TT Silent 150 147 247 274 580 260
TT Silent 200 198 293 386 550 295

PRESSURE CURVES

NOISE LEVEL

The TT Silent provides excellent exhaust ventilation at an extremely low noise level.

Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.

MODEL MIN NOISE LEVEL AT 3M (dBA) MAX NOISE LEVEL AT 3M (dBA)
TT Silent 100 26 33
TT Silent 200 31 36

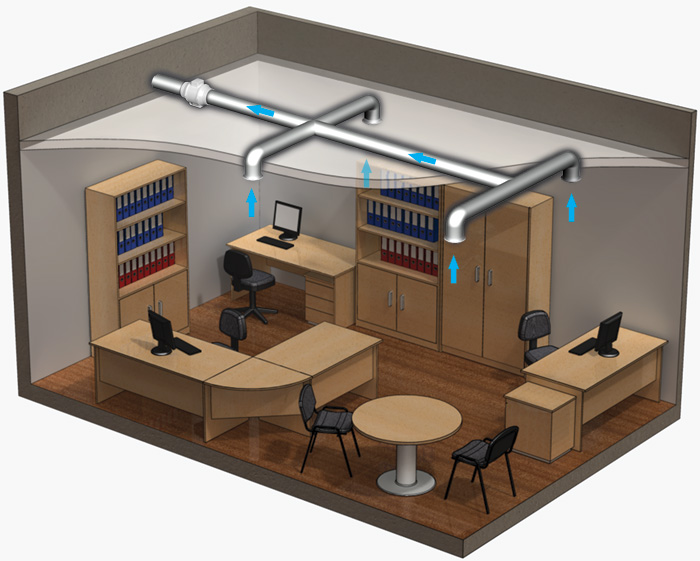

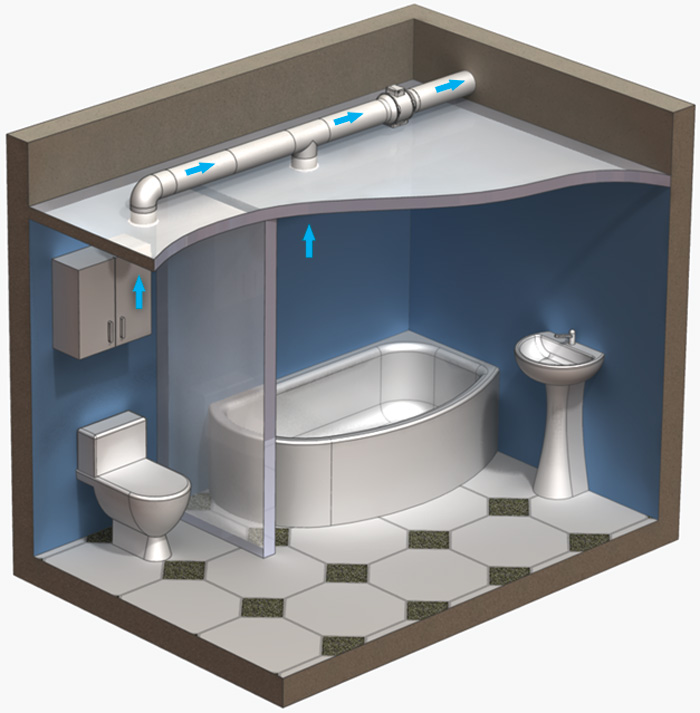

APPLICATION EXAMPLES

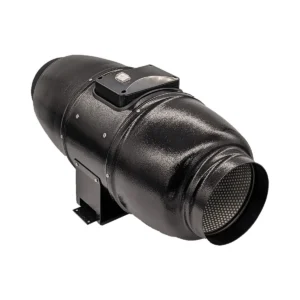

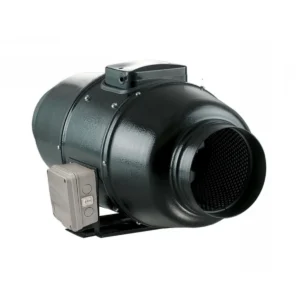

TT SILENT INLINE EXHAUST FAN RANGE

VIEW ALL TT SILENT MODELS:
