FANCO

VK SERIES

Centrifugal Inline Plastic Exhaust Fan in a range of sizes

SKU: EXVUVP***

* Denotes Model Size

The Fanco VK Series is designed to supply and exhaust ventilation in rooms requiring high pressure and powerful airflow

EXTRACTION CAPACITY

The ventilation flow rate can be referred to either in l/s or m³/h. The Fanco VK series offers very powerful ventilation ranging between model sizes. View the litres per second or cubic meters per hour capacity of each model below.

MODELHIGH SPEED SPEED (M3/HR)
VK 100250
VK 150460
VK 200930



MODELHIGH SPEED SPEED (L/S)
VK 10069.5
VK 150127.88
VK 200258.54

DIMENSIONS (MM)

MODELDD1BLL1L2L3
VK 100100250270230302730
VK 150150300310286303030
VK 200200340354276303040

PRESSURE CURVES

NOISE LEVEL

Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.

MODELHIGHEST NOISE LEVEL AT 3M (dBA)
VK 10046
VK 15046
VK 20051

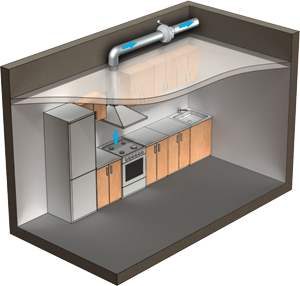

APPLICATION EXAMPLE

VK INLINE EXHAUST FAN RANGE

VIEW ALL VK MODELS:
